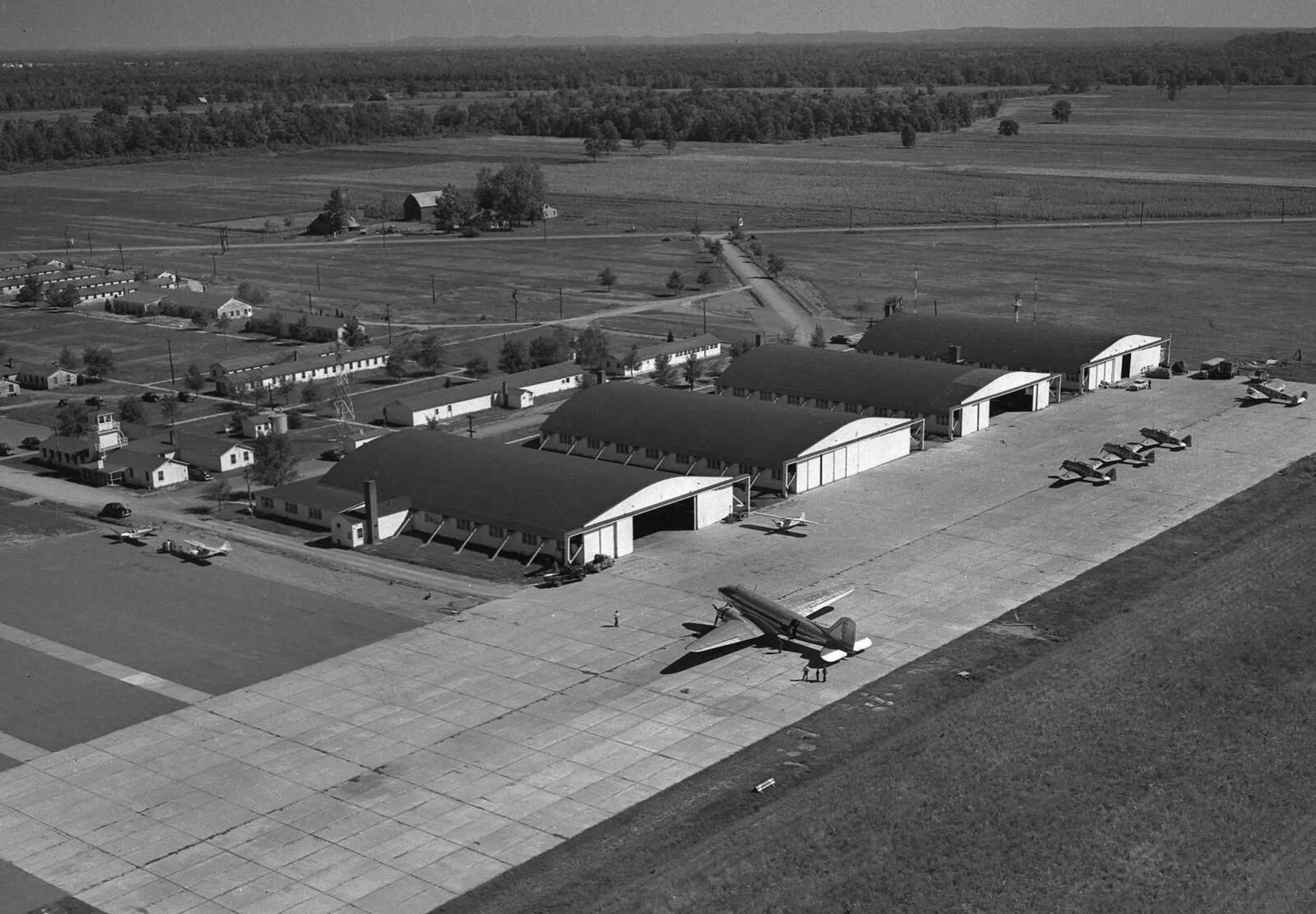

Historic CGI East Ramp Hangars

ForeFlight Overlay

Download the latest overlay for SEMO Pilots using ForeFlight

Get Latest Version

About This Overlay

This KML file contains helpful guidance for our local practice area procedures, including:

  • Five tower-approved airport arrival gates
  • Our local practice area boundaries
  • Visually distinct air-to-air reporting points
  • Airstrips and helipads not depicted on the FAA Charts

Visit the Procedures page to learn more about how we use this overlay to work efficiently within our local area.

📁

CGI Overlay v3.kml

Version: 3

Last Updated: 08 SEP 2025

File Size: 62.0 KB

Download Overlay

If you want to disable air-to-air reporting points, click here

Adding to ForeFlight

1

Download the overlay

Click the download button above to save the file to your device.

Save locally to "Files" on Apple devices.

2

Import to ForeFlight

  • Select the "Open in..." option after download
  • Select the ForeFlight app from the Open In list
  • Save the file: "Custom Content," then "Custom Map Layers"
    • 3

    Enable the Overlay

  • On your main Map display, tap the upper left layer icon
  • Scroll down to find the latest CGI Overlay near the bottom, and tap to enable

    • Cleaning up old versions

    1

    Open ForeFlight, select "More" in the bottom right corner

    2

    Select "Custom Content" then "Custom Map Layers"

    3

    Swipe left or use Edit to delete any unneeded overlays

    Multiple Layers

    If you want to toggle the air-to-air reporting points, this makes it possible. However: You should know what's in our practice areas! If I hear you reporting nonsense like "18 miles southeast of Cape," I will find you and toggle the points on myself.

    📁

    practiceAreas-v3.kml

    Version: 3

    Last Updated: 08 SEP 2025

    File Size: 18 KB

    Area Boundaries & Arrival Gates
    📁

    airToAir-v3.kml

    Version: 3

    Last Updated: 08 SEP 2025

    File Size: 36 KB

    Air-to-Air Reporting Points

    Importing to ForeFlight

    The instructions are the same as above,
    just repeat it for these two files and enable them as needed.
